Pallet Stacker FLEX-E

Name: Pallet Stacker FLEX-E
Brand: Pallit
SKU: 10010440-681
Price: 2925.0 EUR
Availability: InStock

Great value all-rounder for almost every pallet type.

BACK TO WORK: -20% discount

3.393 € VAT included 2.925 €

lifting height

Availability: Only 1 left!

Free delivery: Monday, 15 September

📢 In use by 151+ companies across Europe

SKU 10010440-681

This FLEX-E electric high lift truck with individually adjustable forks is ideal for handling various types of disposable pallets.

Adaptable forks: Allow the picking up of different pallet types
High load capacity: maximum 1,500 kg for versatile applications
Lifting height: Optionally 2.5 m or 3 m maximum lifting height
Powerful battery: Gel battery with 12V/120Ah for continuous use
Electro-hydraulic control: Enables easy lifting and lowering as well as manual movement
Precise control: Continuously adjustable lifting and lowering speed for optimal control
Robust tires: Shock-resistant nylon wheels, ideal for hard floors and short distances
Use: Loading and unloading of trucks without loading ramps and for work on smaller high racks

Technical data

General

Capacity

1500 kg

Capacity at maximum lift

800 kg

Weight

415 kg

Seal

CE

Warranty

5 years warranty Basic

SKU

10010440-681

Brand

Pallit

Wheels

Wheels material

nylon

Steering wheel diameter

180 mm

Steering wheel width

50 mm

Load roller wheel diameter

80 mm

Fork roller width

78 mm

Lift

Lift height

3000 mm

Lift motor power

1.5 kW

Lift speed, unladen

0.08 m/s

Lowering speed, unladen

0.09 m/s

Mast type

Duplex

Lift type

electric

Drive

manually

Battery

Battery type

gel

Battery capacity

120 Ah

Voltage

12 V

Battery voltage

12 V

Battery quantity

1

Battery weight

45 kg

Battery dimensions

360x170x250 mm

Battery charger

external charger

Delivery

carrier

Delivered as

on pallet

Delivery requirements

Ramp or forklift required on site to unload from lorry

Links

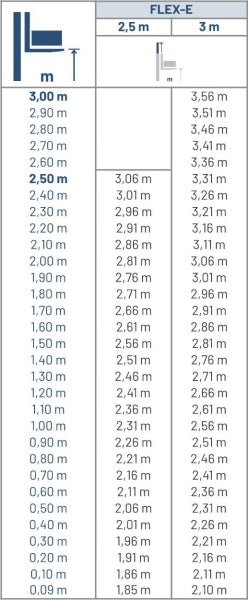

Mast height table

Capacity chart

Product brochure

Dimensions

Fork length

1070 mm

l
Lift height

3000 mm

h3
Load centre

400 mm

c
Height, lowered

2100 mm

h1
Height, extended

3560 mm

h4
Length

1745 mm

l1
Ground clearance

15 mm

m2
Ground clearance, outer

90 mm

h13
Fork height

60 mm

s

Width

960 mm

b1
Fork width, single fork

142 mm

e
Aisle width for 1200x800

2267 mm

Ast
Turning radius

1425 mm

Wa
Min. outer distance between forks

300 mm
Max. outer distance between forks

930 mm
