Electric Stacker MONO for 1,6 m

Electric Stacker MONO for 1,6 m

Provides optimal visibility of the forks during storage and retrieval, stacking and loading and unloading.
BACK TO WORK: -20% discount
5.091,24 € VAT included 4.389 €
5
Five year warranty
+
Options

🔥 -20% additional discount with PALLIT20

Available from: Friday, 24 October

📢 In use by 125+ companies across Europe

SKU 10010163-248

Questions? We’re here to help you

+498123 900 88 90

With our MONO electric reach stacker you always have an optimal view of the fork tips. It has a compact monomast. With a maximum load capacity of 1,000 kg, it can lift and store pallets up to a height of 1,600 mm. This makes it the perfect helper for order picking and transporting.

  • Clear view: Easier maneuvering and picking thanks to monomast for unobstructed view
  • Powerful gel battery: Low-maintenance 105 Ah battery for up to 4 hours of continuous operation
  • Double pallet transport: Efficient movement of two pallets at the same time possible
  • Initial lifting height: 120 mm increased ground clearance for easier crossing of thresholds
  • Compact design: Ideal for confined spaces thanks to a minimum height of 2,050 mm and a turning radius of only 1,450 mm
  • Robust drive motor: 0.65 kW motor , moisture and dust protected for a longer service life
  • Energy level indicator: Always see how long the battery will last

Features

monomast

Makes maneuvering and picking easier thanks to the clear view provided by the monomast.
Elektro-Deichselstapler MONO 10

Robust drive motor

0.65 kW motor, protected against moisture and dust for longevity.
Elektro-Deichselstapler MONO 7

Increased ground clearance

Initial lift of 120 mm makes it easier to drive over door thresholds and loading bridges.
Elektro-Deichselstapler MONO 12

Ergonomic handle

Ergonomically designed and particularly low-wear for comfortable control, even during longer use.

Compact turning circle

Ideal for tight spaces with a turning radius of only 1,450 mm.

Technical data

General
Capacity
1000 kg
Capacity at maximum lift
1000 kg
Weight
640 kg
Forklift licence needed
no
Sound level EN-12053
62 dB
Material
steel
Chassis surface
powder coated
Seal
CE
Warranty
5 years warranty Basic
SKU
10010163-248
Brand
Pallit
Wheels
Wheels material
Polyurethane (PU)
Steering wheel diameter
195 mm
Steering wheel width
70 mm
Fork roller type
tandem
Load roller wheel diameter
80 mm
Fork roller width
70 mm
Lift
Lift height
1600 mm
Free lift
yes
Lift motor power
2.2 kW
Lift speed, unladen
0.14 m/s
Mast type
Mono
Lift type
electric
Drive
Drive motor power
0.65 kW
Drive motor type
DC motor
Travel speed, unladen
5 km/h
Gradeability, unladen
15 %
Max. gradeability, laden
6 %
Drive
electric
Brake
electromagnetic
Battery
Battery type
gel
Operating time
4 h
Battery charging time
5 h
Battery capacity
105 Ah
Voltage
24 V
Battery voltage
24 V
Battery weight
60.8 kg
Battery dimensions
329x172x214 mm
Battery charger
integrated
Delivery
Delivery
forwarding agency
Delivered as
on pallet
Delivery requirements
Access routes accessible for lorry (40 t)
Links

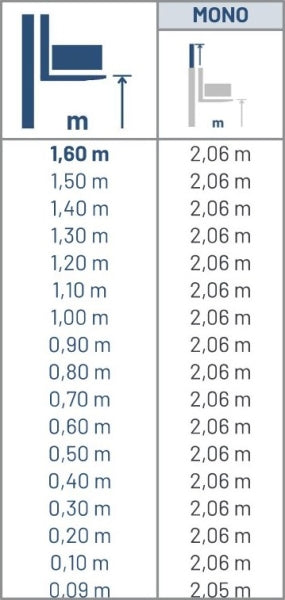

Mast height table
Product brochure

Dimensions

  • Capacity
    Fork length
    Height, lowered
    Lift height
    Weight
    Wheels material
    Battery capacity
    Battery type
    Initial lift height
    Load centre
    Max. gradeability, laden
    Operating time
    Warranty
    Free delivery
    Customer Reviews
    Price

  • Electric Stacker MONO for 1,6 m

    1000 kg
    1150 mm
    2050 mm
    1600 mm
    640 kg
    Polyurethane (PU)
    105 Ah
    gel
    120
    600 mm
    6 %
    4 h
    5 years warranty Basic
    Sunday, 26 October
    4.389 € 5.091,24 € VAT included
