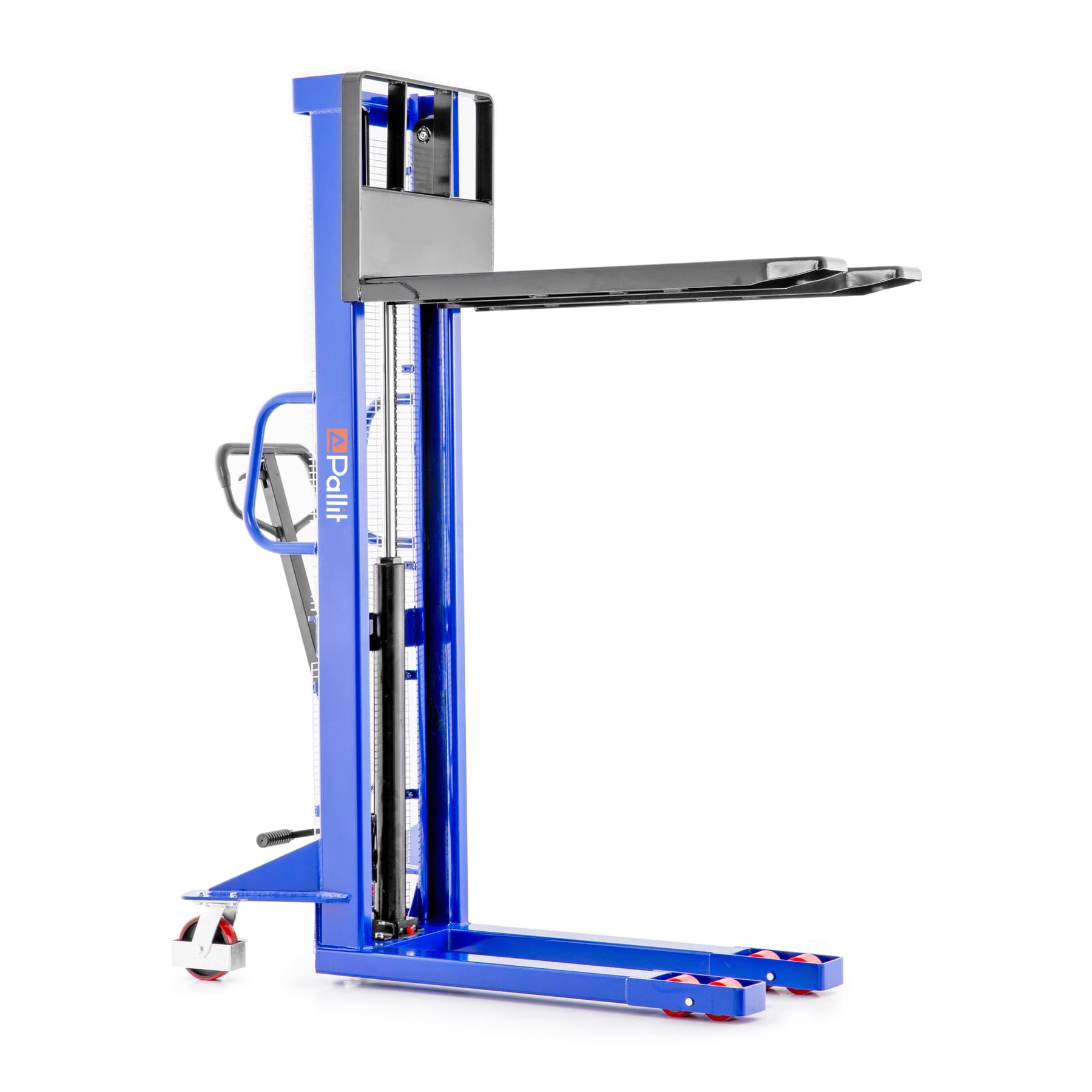

Manual pallet stacker LIFT-L for 2m

Manual pallet stacker LIFT-L for 2m

Reliable all-rounder at a low price for occasional use.
BACK TO WORK: -20% discount
1.721,44 € VAT included 1.484 €
5
Five year warranty

🔥 -20% additional discount with PALLIT20

Availability: Translation missing: en.general.icons.icon_check_circle icon Only 10 left!

Free delivery: Wednesday, 10 September

📢 In use by 1529+ companies across Europe

SKU 10000903-82

Questions? We’re here to help you

+498123 900 88 90

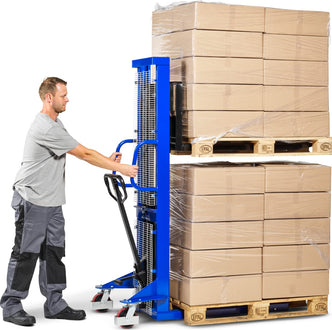

The LIFT-L is an ideal helper for stacking Euro pallets and loading and unloading trucks. It is low-maintenance, durable, strong - also in terms of price.

  • Load capacity: For loads up to 1,000 kg
  • Lifting height: Pallets lift up to 2,000 mm (2m) by pumping the drawbar or foot pedal
  • Free lift: Pallets can be lifted up to a height of 300 mm without changing the overall height. With its 1690 mm, it fits through every door, even when loaded.
  • Turning radius: Only 1,380 mm for easy maneuvering between shelves
  • Fork length: 1,150 mm suitable for Euro pallets (EPAL 1) and lattice boxes
  • Rollers: The tandem tires below the forks provide smooth running and handle minor uneven ground
  • Maintenance: Permanently lubricated ball bearings ensure low maintenance requirements
  • Application: e.g. for loading and unloading trucks without loading ramps and low shelving systems, stacking pallets, etc. - especially in small and medium-sized companies.

Features

LIFT series

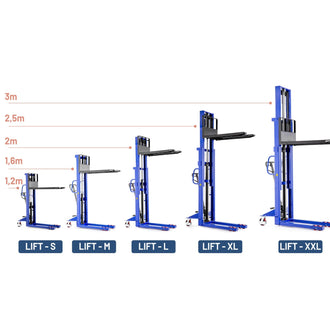

The LIFT series

LIFT hydraulic stackers are reduced to the essentials – this makes them easy to maintain, durable and affordable. They are available in different lifting heights.

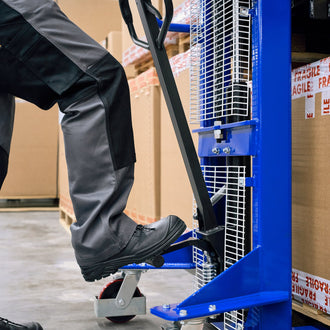

Raise and lower

the loads to the desired height using the foot pedal or by pumping the drawbar. The loads can be lowered continuously using the hand lever on the drawbar.
hand stacker 1,2m image 18

High-quality frame

LIFT hand pallet trucks have a torsion-resistant industrial steel frame with a centre strut and robust loading forks.
hand stacker 1,2m image 19

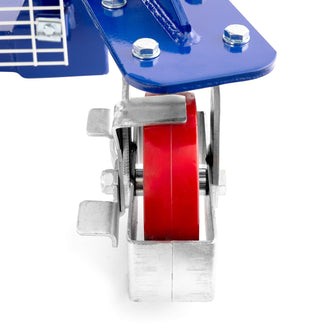

Parking brakes

Mechanical brakes on both steering wheels ensure a secure stand without rolling away. Standard foot protection on the steering wheels protects feet from injury.
LIFT-M

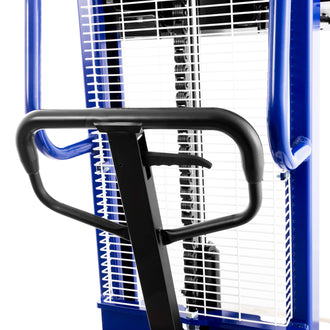

Tubular push bars

Two large tubular push bars on the frame at hand height help when steering, pushing and manoeuvring the hand stacker.
hand stacker 1,2m image 21

Protective grating

A metal grating in a steel frame protects against falling objects without obstructing the view.

Technical data

General
Capacity
1000 kg
Weight
240 kg
Material
steel
Chassis surface
powder coated
Colour
Blue
Seal
CE
Warranty
5 years warranty Basic
SKU
10000903-82
Brand
Pallit
Wheels
Wheels material
Polyurethane (PU)
Steering wheel diameter
145 mm
Steering wheel width
40 mm
Fork roller type
tandem
Load roller wheel diameter
80 mm
Fork roller width
60 mm
Lift
Lift height
2000 mm
Max. lowering when loaded
3.25 mm
Free lift
yes
Free lift height
300 mm
Lift height per full stroke
20 mm
Mast type
duplex
Lift type
manual hydraulic
Drive
Drive
manual
Delivery
Delivery
forwarding agency
Delivered as
on pallet
Links

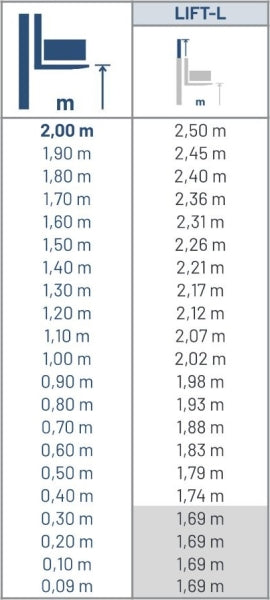

Mast height table
Capacity chart
Product brochure
Product manual

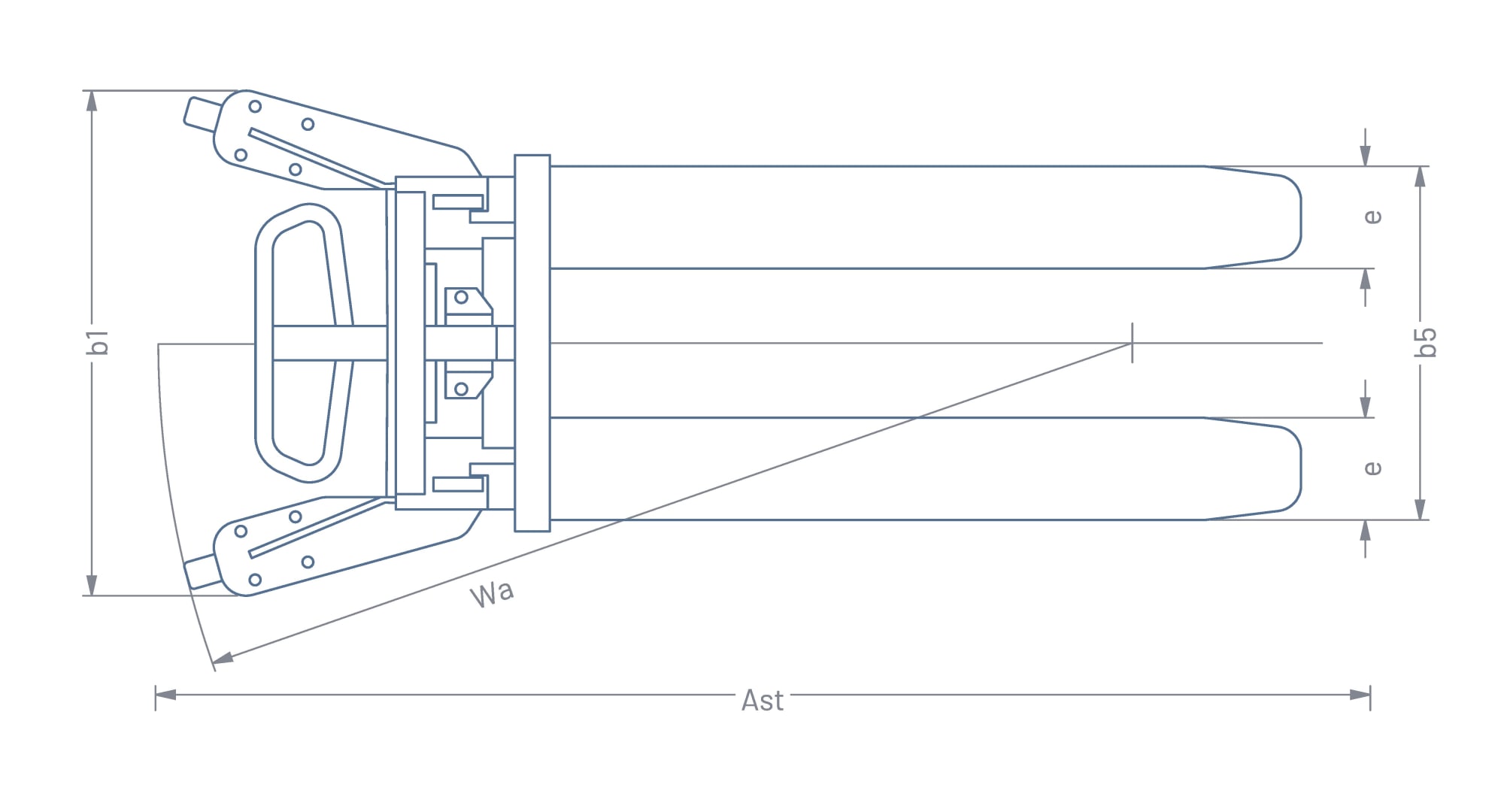

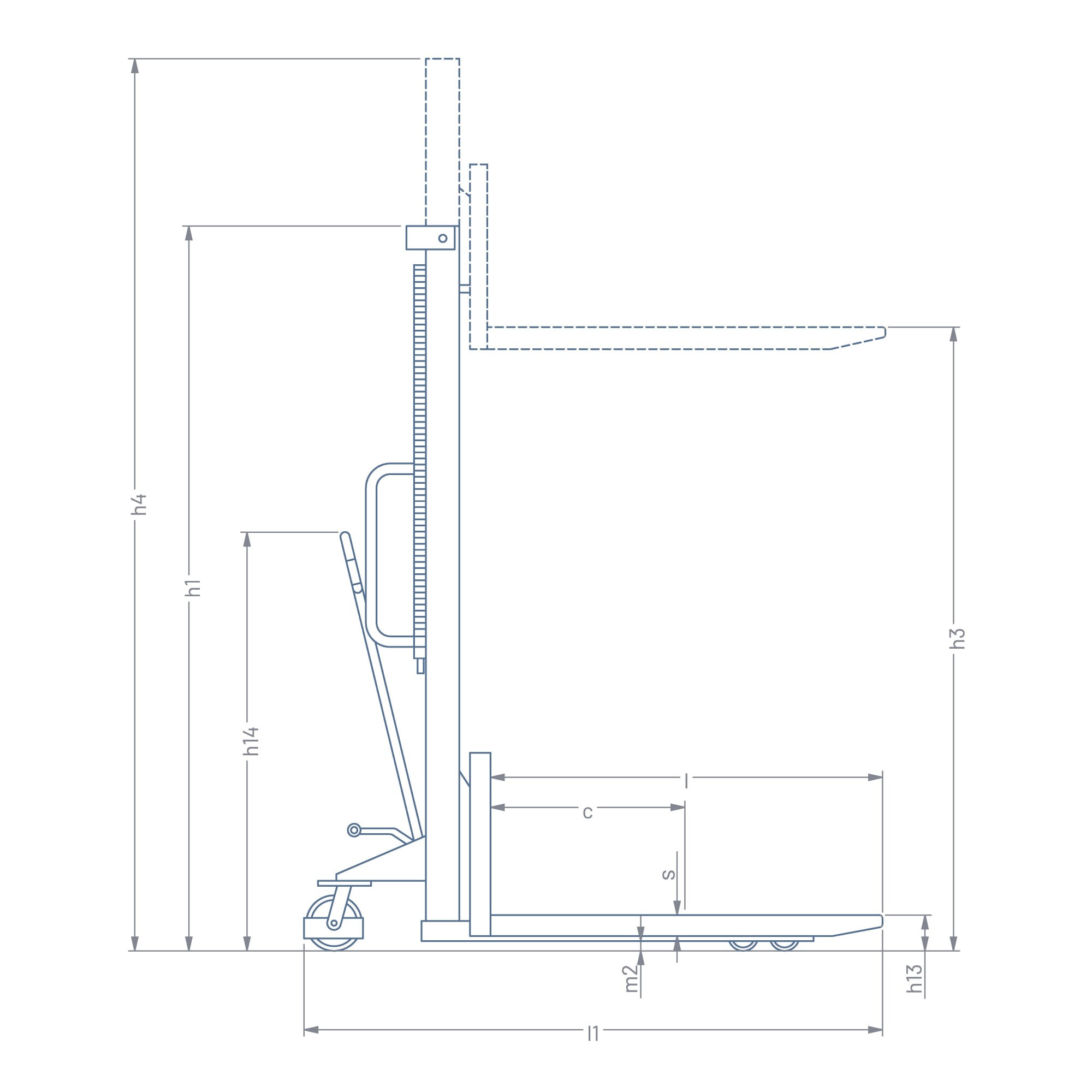

Dimensions

  • Capacity
    Fork length
    Free lift height
    Height, lowered
    Lift height
    Weight
    Wheels material
    Load centre
    Warranty
    Free delivery
    Customer Reviews
    Price

  • Manual pallet stacker LIFT-L for 2m

    1000 kg
    1150 mm
    300 mm
    1690 mm
    2000 mm
    240 kg
    Polyurethane (PU)
    600 mm
    5 years warranty Basic
    Wednesday, 10 September
    1.484 € 1.721,44 € VAT included
