Electric Pallet Stacker ULTRA-L

Electric Pallet Stacker ULTRA-L

Name: Electric Pallet Stacker ULTRA-L
Brand: Pallit
SKU: 10005724-263
Price: 9009.0 EUR
Availability: InStock

Ultimate reach stacker for loading and unloading into high pallet racks.

10.450,44 € VAT included 9.009,00 €

📢 In use by 94+ companies across Europe

SKU 10005724-263

The fully electric ULTRA-L high lift truck is specially designed for loads of up to 1500 kg and can lift and store pallets up to a height of 4.5 m. Equipped with innovative technology, this electric high lift truck enables fast and efficient goods handling.

Cost efficiency: Fast amortization due to low price in the fully electric high-lift segment
Free lift function: Enables maneuvering even in low spaces
Maneuverability: Small turning radius of 1575 mm , ideal for narrow warehouse aisles
Speed: Maximum driving speed of 5.8 km/h when loaded, ideal for medium-long distances
Powerful battery: Lead batteries with a capacity of 240 Ah
Safety features: Automatic lifting shutdown, pressure relief valve, safety and emergency stop switch and rounded transport forks
Energy level indicator: Constant overview of the remaining battery life.
Electromagnetic braking system: Wear-free braking for increased safety

Features

Particulary durable

The ULTRA-L is a robust and stable construction made of high-strength components.

Well informed

The display shows the current energy level and the remaining operating hours.

High efficiency

The brushless traction motor requires little power and generates less heat - the battery charge lasts longer.

Free lift

Lift pallets up to 1570 mm with the same design height - ideal for low spaces.

Robust triplex mast

Safely lift palletised goods up to 4.5 m.

Technical data

General

Capacity

1500 kg

Capacity at maximum lift

800 kg

Weight

1370 kg

Forklift licence needed

no

Sound level EN-12053

65 dB

Material

steel

Chassis surface

powder coated

Colour

Blue

Seal

CE

Warranty

5 years warranty Plus

SKU

10005724-263

Brand

Pallit

Wheels

Wheels material

Polyurethane (PU)

Steering wheel diameter

250 mm

Steering wheel width

80 mm

Fork roller type

tandem

Load roller wheel diameter

80 mm

Fork roller width

84 mm

Lift

Lift height

4500 mm

Free lift

yes

Free lift height

1570 mm

Lift motor power

3 kW

Lift speed, unladen

0.15 m/s

Lowering speed, unladen

0.12 m/s

Mast type

Triplex

Adjustment for lifting and low

no

Lift type

electric

Drive

Drive motor power

1.2 kW

Drive motor type

AC motor

Travel speed, unladen

6 km/h

Creep speed button

Yes

Gradeability, unladen

15 %

Max. gradeability, laden

5 %

Drive

electric

Brake

electromagnetic

Battery

Battery type

lead batteries

Operating time

6 h

Battery capacity

240 Ah

Voltage

24 V

Battery voltage

24 V

Battery quantity

1

Battery weight

220 kg

Battery dimensions

625x254x500 mm

Battery charger

external

Delivery

special transport

Delivered as

on pallet

Delivery requirements

Ramp or forklift required on site to unload from lorry

Links

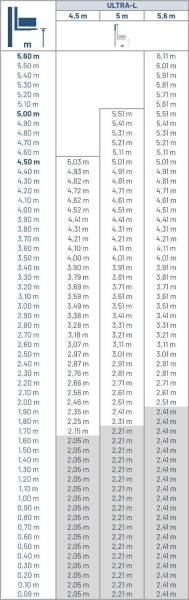

Mast height table

Capacity chart

Product brochure

Product manual

Dimensions

Fork length

1150 mm

l
Lift height

4500 mm

h3
Free lift height

1570 mm

h2
Load centre

600 mm

c
Lift height, effective

4410 mm

h12
Height, lowered

2050 mm

h1
Height, extended

5030 mm

h4
Tiller height

1300 mm

h14
Length

1950 mm

l1
Ground clearance

31 mm

m2
Ground clearance, outer

90 mm

h13

Width

820 mm

b1
Fork width, outer distance

570 mm

b5
Fork width, single fork

180 mm

e
Aisle width for 1200x800

2420 mm

Ast
Turning radius

1575 mm

Wa
Distance between forks

210 mm
Max. outer distance between forks

570 mm

Capacity

Fork length

Free lift height

Height, lowered
