Electric Beam Trolley BEAM 1t

Positionnement précis des charges, entièrement électrique et sans effort.
148,48 € VAT included 128 €

Free delivery: Monday, 3 November

📢 In use by 2721+ companies across Europe

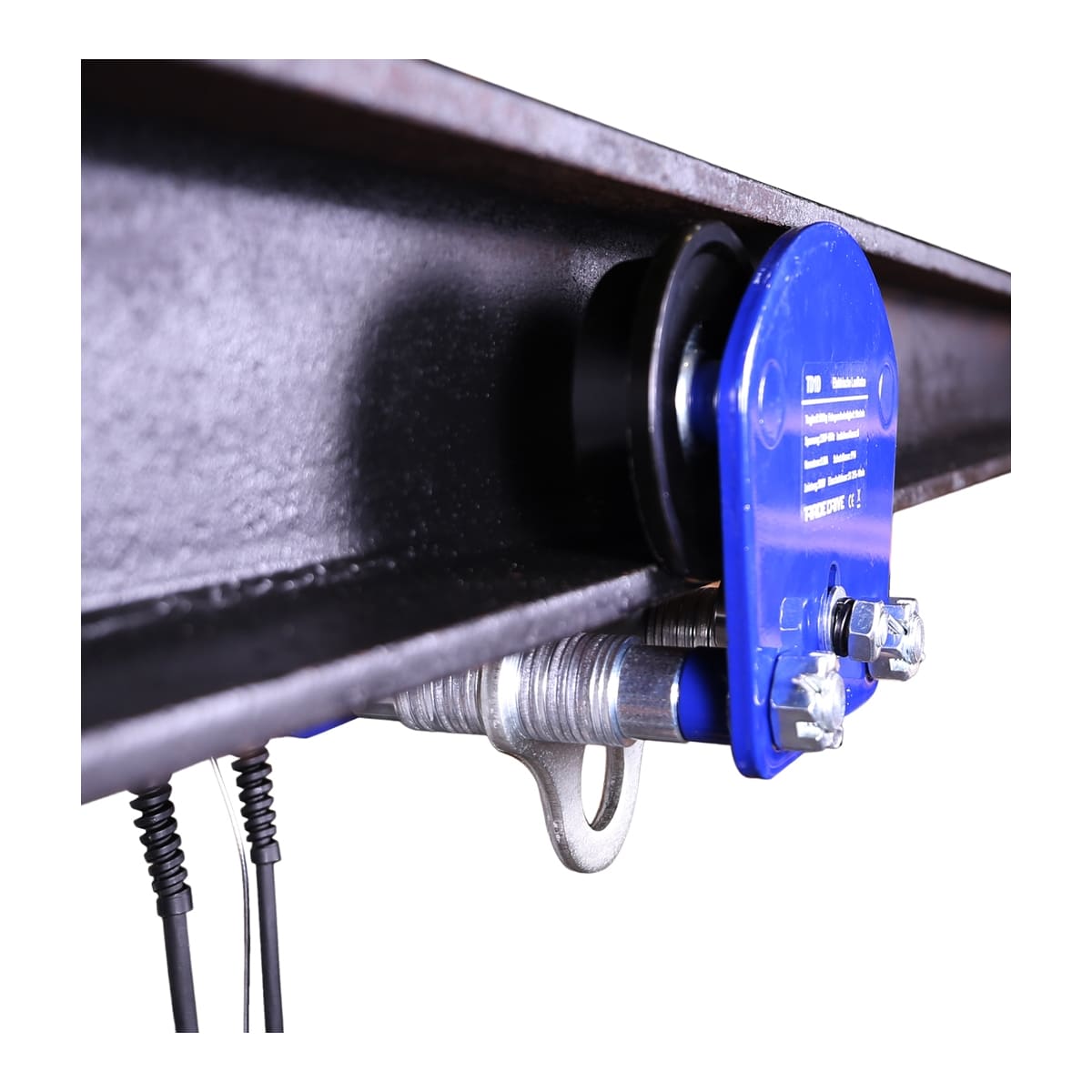

The electric trolley BEAM is optimally designed to safely attach and precisely position loads of up to 1000 kg. It is suitable for mounting on H-beams or similar support profiles and is powered by a powerful 120 W motor.

  • High load capacity: Reliable lifting of loads up to 1000 kg
  • Flexible application area: Minimum curve radius of 1000 mm for optimal maneuverability
  • Adjustable flange width: Adjustable from 68 - 110 mm , suitable for a variety of carrier profiles
  • Easy installation: Thanks to the low weight of only 15 kg, it is quick and easy to install
  • Convenient remote control: Operation of the trolley via remote control with a cable length of 1.6 m

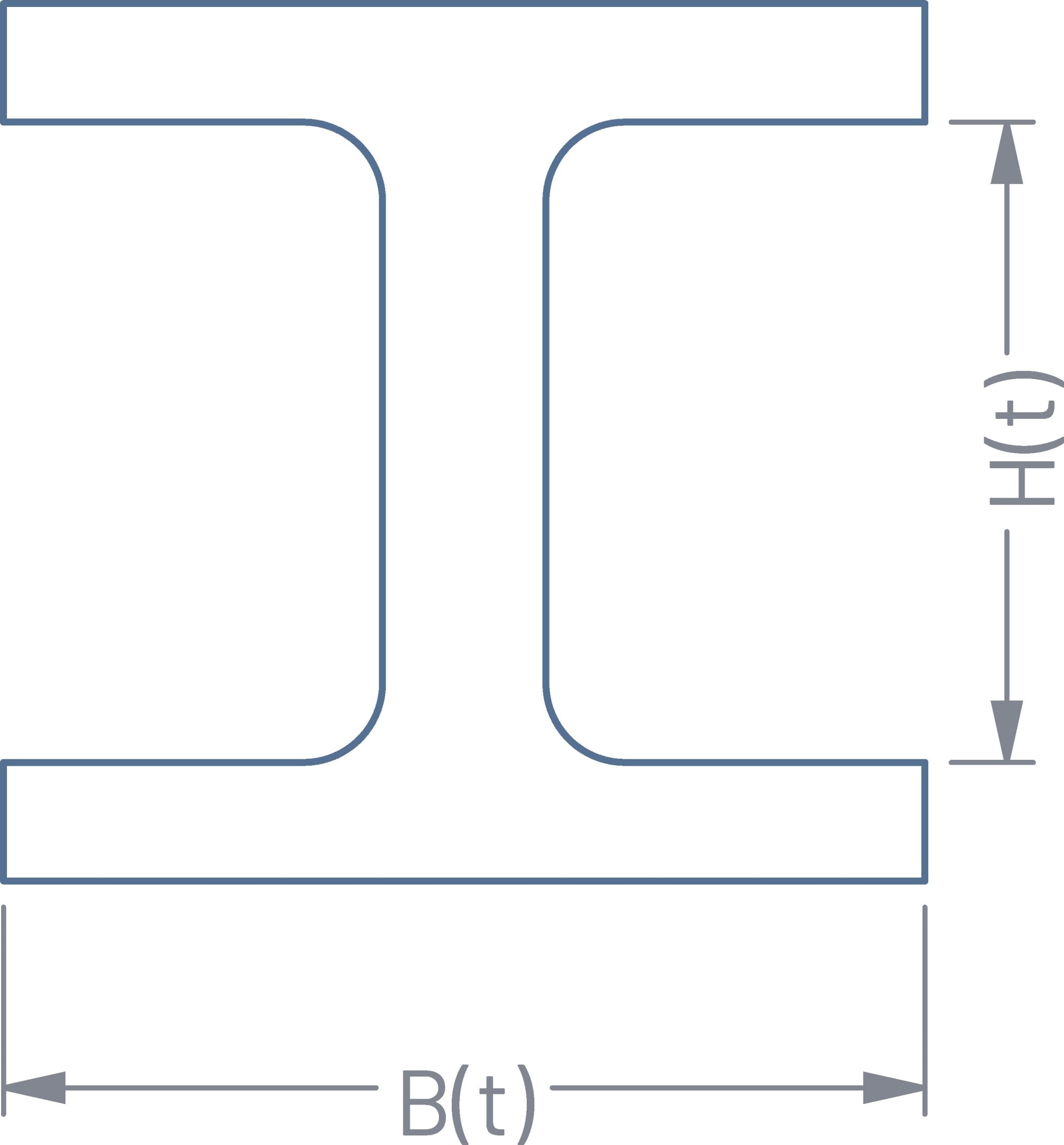

  • Carrier compatibility: Suitable for IPE 140-200 and INP 160-240 carrier profiles
  • Compact dimensions: 320 x 330 x 165 mm (L x W x H), ideal for versatile applications

Technical data

General
Capacity
1000 kg
Weight
15 kg
Material
steel
Power rating
S3-25%-10
Seal
CE
Control cable length
1.6 m
Min. radius curve
1000 mm
Brand
Pallit
Product ID
10010122-0
Lift
Lift motor power
120 kW
Battery
Battery voltage
230 V
Delivery
Delivery
Parcel service
Delivered as
parcel
Links
Safety instructions
Product manual

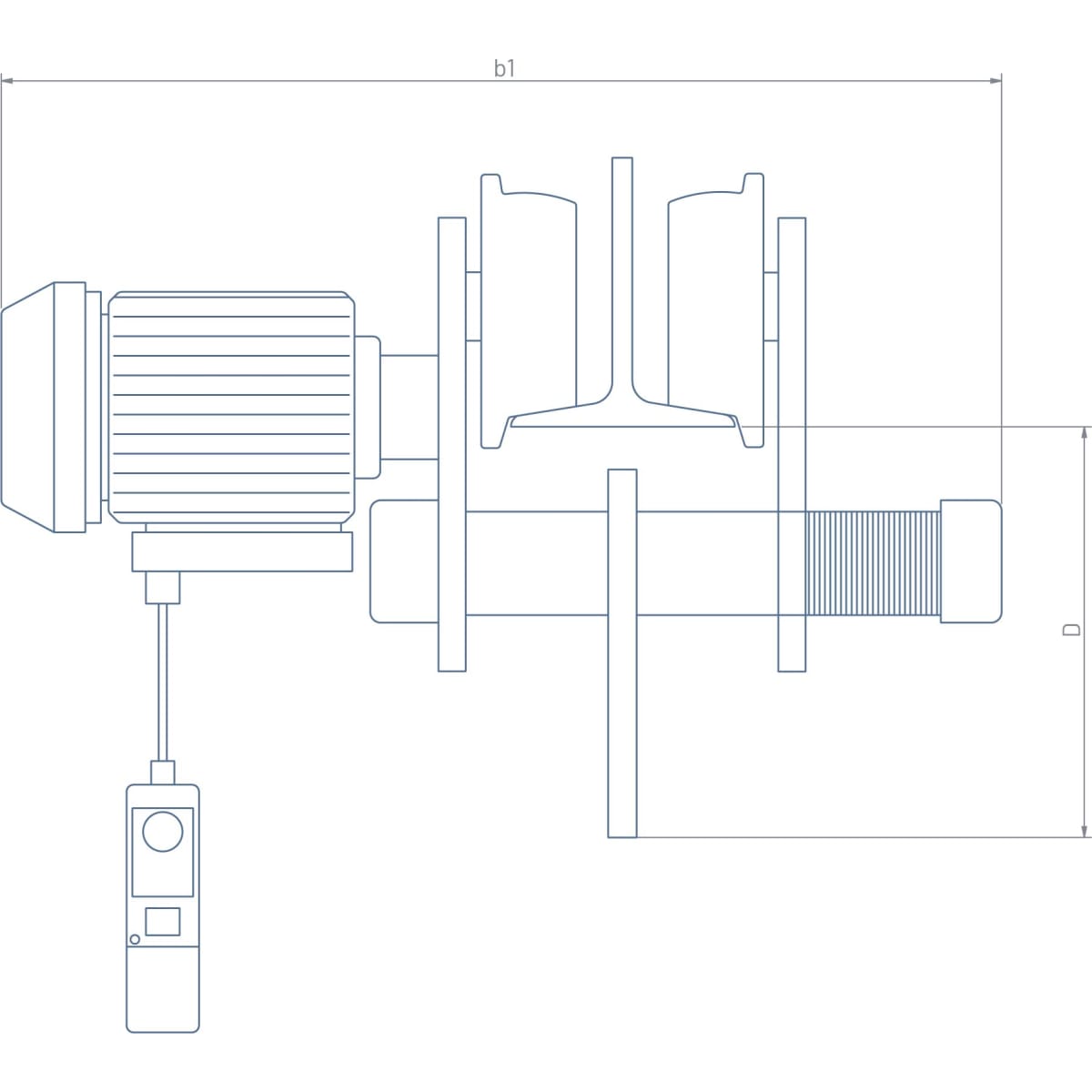

Dimensions

Customer Reviews

Based on 4 reviews
50%
(2)
25%
(1)
25%
(1)
0%
(0)
0%
(0)
l
luigi sesso
Carrello

Prodotto molto ben curato e solido.Fa il suo lavoro egregiamente ......lo consiglio

R
Roland Kretschmer
first bad then good

The motor was defective upon first delivery; the replacement delivery was fine.
Disadvantage: the assembly instructions are completely inadequate, especially since the aim here was to combine the trolley with the existing cable hoist.
Suggestion for improvement: The remote control should provide a possibility to extend the cable, for example via connectors.
Telephone service was good!

D
Denis Köhn

Electric trolley BEAM for 1000 kg

-
-
Fast delivery

Fast delivery, great part
